Load cell is a sensor or a transducer that converts a load or force acting on it into an electronic signal. The single board trainer helps to study : load cell behavior for tensile & Compressive load. The experimental setup contains : Load cell fitted on a steel...
A thermocouple is a sensor that measures temperature. It consists of two different types of metals, joined together at one end. When the junction of the two metals is heated or cooled, a voltage is created that can be correlated back to the temperature. The...
A thermistor is a temperature-sensing element composed of sintered semiconductor material which exhibits a large change in resistance proportional to a small change in temperature. Thermistors usually have negative temperature coefficients which means the resistance...

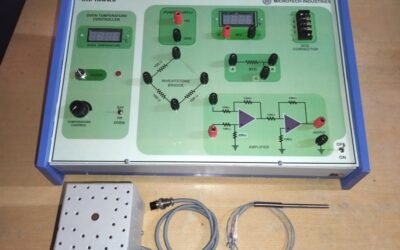

An RTD (Resistance Temperature Detector) is a sensor whose resistance changes as its temperature changes. The resistance increases as the temperature of the sensor increases. The experimental setup with steel case and integral power supply helps to study the...
The single board trainer with steel case and integral power supply helps to study the characteristics of the PT100 & Thermistor. An RTD (Resistance Temperature Detector) is a sensor whose resistance changes as its temperature changes. The resistance increases as...
Inductive transducers work on the principle of inductance change due to any appreciable change in the quantity to be measured i.e. measured. The experimental setup with steel case and integrated power supply and Digital panel meter for measurement of voltage. The...
The hall effect element is used for the measurement of the location or displacement of a structural element i.e. it serves as an indirect acting position displacement or proximity transducer in case where a change in geometry magnetic structure causes a change in the...

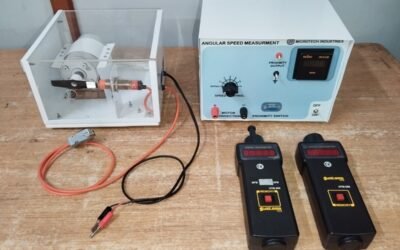

A proximity sensor uses an electromagnetic field to measure changes in the distance to an object. As a gear moves past the sensor, it measures a variation in distance; close (tooth) and far (notch). The rotation speed can be determined based on the time between these...
The Stroboscopic technique of rotational velocity measurement operates on a Photoelectric Pulse – counting methods, except that the pulses involved consists of flashes of light generated electronically and whose frequency is adjustable so that it can matched with the...
To design and fabricate a temperature controller and to study its performance characteristics. The trainer helps to study the calibration of a thermister ( i.e. Temperature vs. Voltage ) and to control temperature of a heat bath. The experimental setup consists of the...
