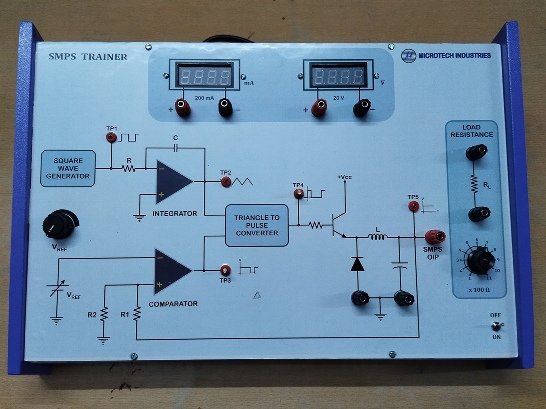

Switched Mode Power Supply (SMPS) Trainer

The single board trainer helps to studies :

• 1. How to operate and performance of a Switched Mode Power supply.
  2. Load regulation characteristics of SMPS.

The trainer contains :

• 1. I.C. regulated Power supply : +12 V & -12 V @250 mA.
  2. Digital Voltmeter : 0 – 20V.
  3. Digital Ammeter : 0 – 200 mA.
  4. Square Wave Generator.
  5. Comparator.
  6. Pulse converter.
  7. Variable Load Resistance.
  8. Connecting wire.

• Additional accessory required :
  • Dual trace oscilloscope
