Communication Engineering Lab

The single board trainer helps to study the Fourier series of a square, triangular and half sine wave using oscilloscope. The trainer consists : Wave Generator : Sine, Square and Triangular.Frequency Range : 1KHz to 100KHz with selector switch, Continuously...

The single board trainer helps to study of Transmission line characteristics. The following experiments to be performed: To measure the Attenuation constant of the given transmission line.To measure the Phase shift constant of the given transmission line.To study the...

The single board trainer with in built I.C. regulated dual channel power supply helps to construct Modulator using Transistor amplifier & to demonstrate how Signal can be added to a carrier & observe the amplitude modulated waveforms & check the percentage...

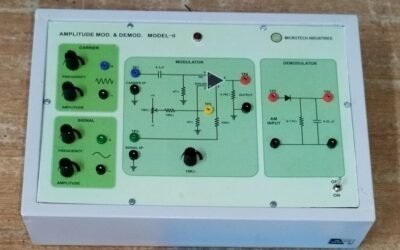

The single board trainer with in built I.C. regulated dual channel power supply helps to construct Modulator using Operational transconductance amplifier & to demonstrate how Signal can be added to a carrier & observe the amplitude modulated waveforms &...

The single board trainer helps to construct : Double Side Band - Suppressed Carrier Transmitter using Balanced Modulator.Single Side Band - Suppressed Carrier Transmitter using Balanced Modulator.Single Side Band - Suppressed Carrier Receiver using Product Detector....

The single board trainer helps to studies the following: To become familiar with the phase Locked Loop ( PLL ) and its major subsystem building blocks.To study the static behavior of the phase locked loop.To study the dynamic behavior of the phase locked loop.To...

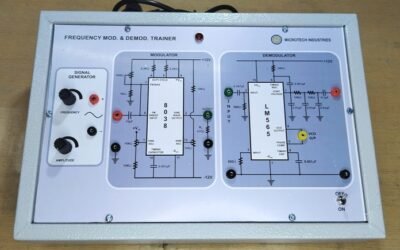

The single board trainer with inbuilt I.C regulated power supply helps to construct Modulator & to demonstrate how Signal can be added to a carrier & observe the frequency Modulated waveform & measure the frequency deviation. The demodulation part helps to...

The single board trainer helps to study Pulse Amplitude Modulation & Demodulation technique. The trainer contains : I.C. Regulated Power Supply.PAM Modulator.PAM Demodulator.Sine Wave Signal Generator : Variable Frequency [ 300 Hz – 3 KHz] & Variable Amplitude...

The single board trainer helps to study Pulse Width Modulation and Pulse Position Modulation & Demodulation technique. The trainer contains : I.C. Regulated Power Supply.PWM & PPM Modulator.Demodulator.Sine Wave Signal Generator : Variable Frequency [100 Hz –...

The single board trainer helps to studies ASK Modulation & Demodulation technique. The trainer consists of : Square Wave Signal Source : Variable Frequency [ 100 Hz – 700 Hz ]Sine Wave Carrier Generator : Variable Frequency [ 10 KHz – 100 KHz ]Modulator using...
