The single board helps to studies FSK Modulation & Demodulation. The trainer consists of : Signal Source : Variable Frequency [ 20 Hz – 1KHz ] and Amplitude [ 10V max ].Modulator section with carrier frequency Generator using XR2206.Demodulator section using I.C....
The single board trainer helps to studies Phase Shift Keying Modulation & Demodulation. The trainer consists of : Sine Wave Carrier Generator : Frequency 33 KHz.Square Wave Signal Source : Variable Frequency 16 KHz [ Max ] and Amplitude 5V [ Max ].PSK...
This kit provides facilities to students for experimentation in the area of Pulse Amplitude Modulation, Demodulation and Time Division Multiplexing of those signals. It provides the student a facility to examine Sampling, Multiplexing, demultiplexing and signal...
Time-division multiplexing (TDM) is a method of transmitting and receiving independent signals over a common signal path by means of synchronized switches at each end of the transmission line so that each signal appears on the line only a fraction of time in an...
In frequency-division multiplexing (FDM), multiple signals are combined for transmission on a single communications line or channel, with each signal assigned to a different frequency (sub channel) within the main channel. The frequency...

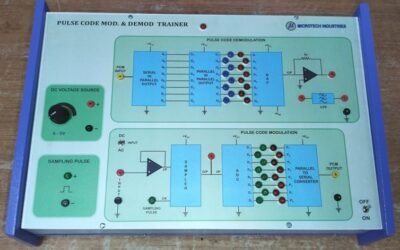

The single board trainer helps to study Pulse Code Modulation & Demodulation. The following experiments to be done : To be familiar with Pulse Code Modulation and Demodulation Technique.Measurement of Bit Rate & Bandwidth.Measurement of Step size. The...

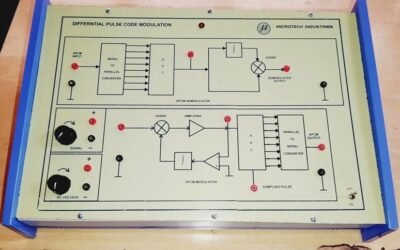

In a DPCM transmitter, the analog input signal is band limited to one-half the sample rate, then Amplified & compared with the preceding accumulated signal level in the Adder [basically it is subtractor] . The output of the Adder is the difference between the...

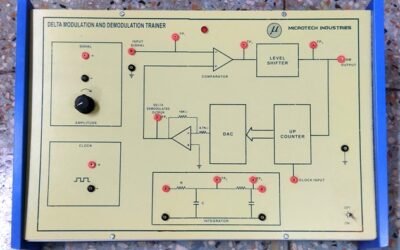

The single board trainer helps to studies Delta Modulation & Demodulation action. The trainer contains : ±5V @500 mA and ±12V @500 mA.TTL Clock.Signal Source.Delta Modulator.Delta Demodulator. Additional Accessory Required : Dual Trace Oscilloscope

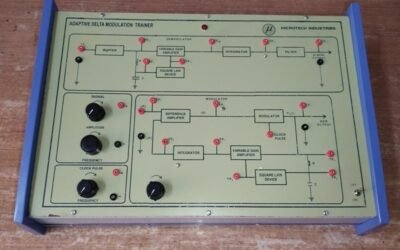

The single board trainer helps to studies Adaptive Delta Modulation & Demodulation action. The trainer contains : I.C Regulated Power Supply.Variable Clock Generator.Signal Generator with variable Frequency and Amplitude.Adaptive Modulator.Adaptive...
The single board trainer helps to design, implementation and studies of the properties of 15 bit P.N. Sequence using shift register. The trainer kit contains : I.C. regulated power supply : +5 V @ 500 mA.Variable Clock Pulse.JK Flip Flop - 4 nos.AND Gate - 3 nos.OR...
