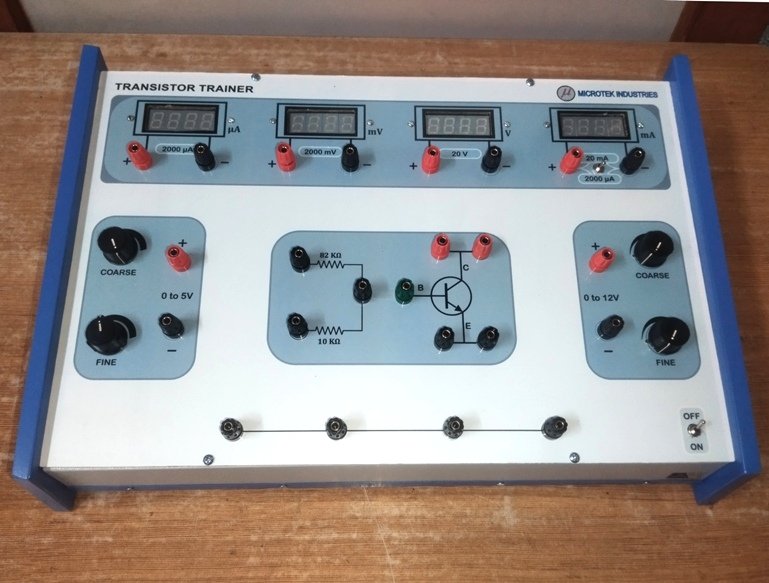

The single board trainer helps to study input & output characteristics of transistor in CE & CB modes and determination of hybrid parameters.
The trainer consists of :
- Dual channel I.C. regulated variable power supply : 0 – 5V@100 mA and 0 – 12 V @250mA with coarse and Fine voltage control faculties.
- Digital milliammeter : 0 – 20 mA
- Digital Microammeter : 0 – 2000 uA
- Two voltmeters : 0 – 20 V
- Transistor : CL 100
- Connecting Wire
