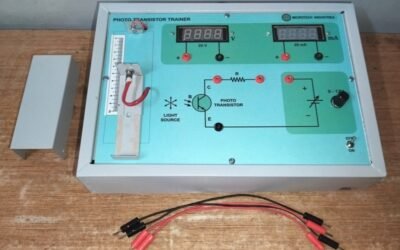

The single board trainer with in built I.C regulated variable power supply, two digital voltmeter and current to voltage converter helps to study the following experiments : Output characteristics when illumination is kept constant.Illumination Vs. Output current...
The trainer kit helps to study the following experiments : Input voltage Vs. Forward current characteristics of Transmitting LED.Output voltage Vs. current characteristics.Current Transfer Ratio.Measurement of Bandwidth.Switching characteristics. The trainer kits...
To Study of Sodium vapour lamp, Mercury vapour lamp, CFL with their connections and the technical specification. The experimental setup fitted on a Bakelite board consists of Sodium Vapour lamp with Ballast and ignitor.Mercury Vapour lamp with BallastCompact...
![LASER Diffraction Experiment [Using Crossed Grating]](https://microtekindustries.com/wp-content/uploads/2021/11/LASER-Diffraction-Trainer-400x250.jpg)
To study the diffraction pattern of a crossed grating using a LASER source and hence to determine the grating constant. A crossed grating is a combination of two transmission gratings such that the rulings of one are perpendicular to the rulings of the other. When a...
