Objective : Digital Transreceiver module to transmit and receive digital signal through Optical Fiber. The trainer contains : I.C. regulated + 5 V @ 500mASquare wave Generator :100 Hz to 100K Hz.Output 0 to 5 V peak to peak50 Ohms output impedance,Digital frequency...
Objective : Analog Transmitter and Receiver modules to transmit and receive signal.Establish the Voice Communication Link. The trainer contains : I.C. regulated + & - 12 V @ 500mA . Sine wave Generator :100 Hz to 100K...
The Trainer kits helps to study the following Experiments: Forward Voltage & Current characteristics.Forward Current vs Luminous power of Light Characteristics with and without optical fiber.Angular Displacement vs Luminous power with and without optical fiber....
Experiment no.1 - Photo Diode Characteristics of a Solar Cell : Draw V – I characteristics of a p – n junction solar cell used as a Photodiode under dark condition and at a predetermined level of illumination.Find out short circuit current and open circuit voltage...

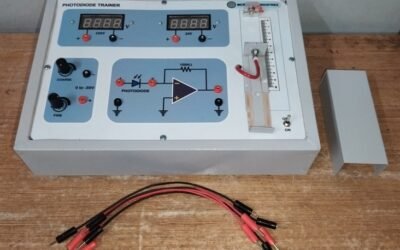

The single board trainer with in built I.C regulated variable power supply, one digital voltmeter and one milliammeter helps to study the following experiments : Illumination Vs. current characteristics at constant Reverse bias voltage.Reverse bias voltage V Vs....
The trainer helps to study the following experiments : V-I characteristics of LDR at constant illumination .Current Vs. illumination characteristics at constant voltage.Illumination vs. Resistance characteristics and also for conductance characteristics.Spectral...
