The trainer helps to study : Draw V (DS) vs. I (D) characteristics.Draw V (GS) vs. I (D) characteristics and hence to calculate the MOFET parameters. The trainer consists of : Dual channel variable power supplies 0 – 15V@250 mA & 0 – 5V @ 250 mA .Digital...
The single board trainer helps to studies the Emitter characteristics ( I Vs. V ) and Relaxation oscillator. The trainer contains : IC regulated variable power supply : 0 – 15 V @250 mADigital milliammeter : 0 – 20 mADigital voltmeter : 0 – 20 VSet of resistanceSet of...

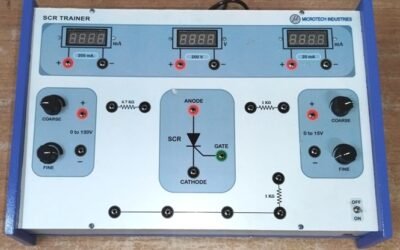

The trainer helps to study the V – I characteristics of SCR The trainer consists of : Dual channel variable power supplies : 0 – 130 V @ 500 mA & 0 – 15 V @ 100 mA.Digital Voltmeter : 0 – 20 VDigital Voltmeter : 0 – 200 VDigital Ammeter : 0 – 20 mASet of...

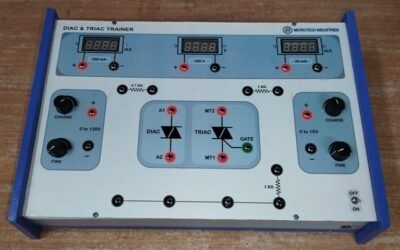

The trainer helps to study the V – I characteristics of Triac & Diac. The trainer consists of : Dual channel variable power supplies :0 – 130 V @ 500 mA.0 – 15 V @ 100 mA.Digital Voltmeter : 0 – 20 V.Digital Voltmeter : 0 – 200 V.Digital Ammeter : 0 – 20 mA.Set...

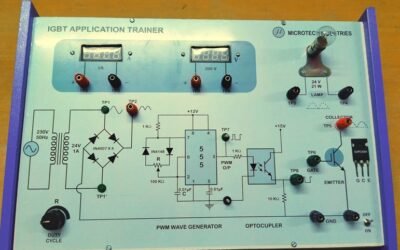

The single board trainer helps to studies the following characteristics : Output characteristics , VCE Vs. IC when VGE is constant.Transfer characteristics.VGE Vs. IC when VCE is constant. The trainer kit contains : I.C regulated variable power supply : 0 to 5 V.I.C...
Three basic BJT bias circuits are investigated : Base bias, Collector to base bias and Voltage divider bias. Two transistors with different hfe values [ hfe(A) and hfe(B) ] are used to demonstrate the dc current gain effect on each bias circuit. Each...
The single board trainer with in built I.C. regulated power supply helps to study A single stage CE Amplifier.The frequency response of the Amplifier.The effect of negative feedback on the performance of the amplifier.Bandwidth measurement. The trainer consists of :...
The single board trainer helps to studies : A two stage R – C Coupled Amplifier.The frequency response of the Amplifier.The effect of negative feedback on the performance of the amplifier.Bandwidth measurement. The trainer consists of : IC regulated power supply +12V...
A single board trainer helps to study & determination of output power, frequency response and efficiency of a Class A power amplifier. The trainer contains : I.C regulated power supply.Set of resistances, capacitors etc.Transistors.Output transformer. Additional...
A single board trainer helps to study & determination of output power, frequency response and efficiency of a transformer coupled push pull amplifier. The trainer contains : I.C regulated power supply : +6 V.Digital AC Voltmeter : 0 - 20 V.Digital AC Milliammeter...
