![Determination of Steady State and Transient Response of R-L, R-C & R-L-C circuit to a Step Change in Voltage. [1st & 2nd Order System]](https://microtekindustries.com/wp-content/uploads/2021/08/1st-2nd-Order-Transient-Response-Trainer-12-8-1.jpg)
by Microtek Industries | Aug 2, 2021 | Network & Circuit Lab
The single board trainer helps to studies steady state and transient response of R-L, R-C and R-L-C circuit to a step change in voltage. The trainer kit contains Set of resistances.Set of capacitors.Set of inductors. Additional Accessories required : Function...
by Microtek Industries | Aug 2, 2021 | Electrical Engineering Lab
The unit helps to study the following experiments : To trace the B-H loop of a transformer core using CRO.To evaluate the hysteresis loss in the specimen. The unit consists of : Step Down Transformer.Sample TransformerSpecification :N1 is the No. of turns in the...
by Microtek Industries | Aug 2, 2021 | Network & Circuit Lab

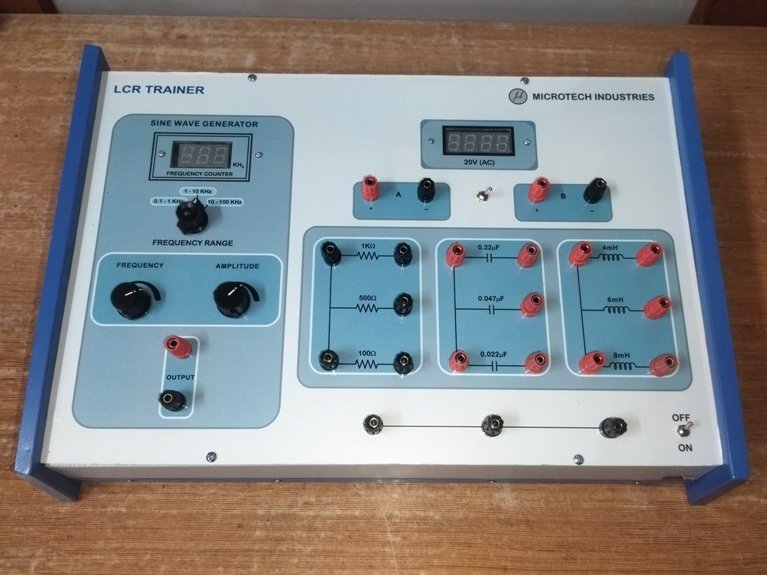

The single board trainer within built 100 Hz to 100 KHz variable sine wave generator & adjustable amplitude (V pp = 20 V) with frequency counter, an a.c. voltmeter, various sets of resistances, capacitors and inductors helps to study the series & Parallel...
by Microtek Industries | Aug 2, 2021 | Network & Circuit Lab
The single board trainer with in-built I.C. regulated variable power supply , Digital voltmeter & milliammeter for measurement of voltage & current helps to study Thevenin, Nortons, Maximum power transfer and superposition theorems using a resistive...
by Microtek Industries | Aug 2, 2021 | Network & Circuit Lab
The single board trainer helps to study current in any branch of multisource circuit using superposition theorem. The trainer contains two voltage sources, three digital milliammeters, one voltmeter & set of resistances.
