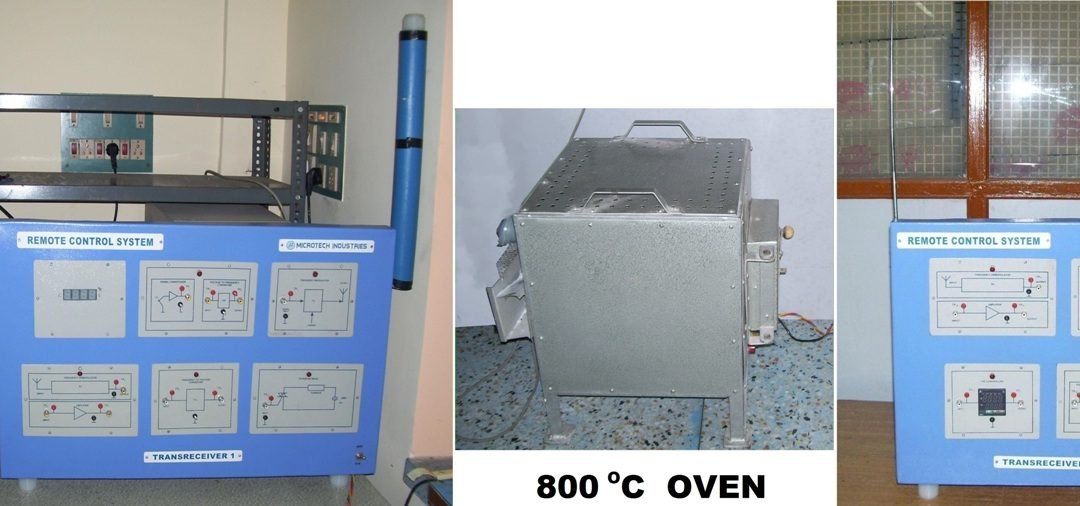

Closed Loop Remote Control System

by admin | Aug 13, 2021 | Remote Control & Telemetry Lab

A closed loop remote control system is an electronic device that automatically regulates a system to maintain a desired state or set point without human interaction. It uses a feedback system or sensor. Closed loop control is contrasted with open loop control, where...

VCO & PLL Trainer

by admin | Aug 13, 2021 | Remote Control & Telemetry Lab

A phase-locked loop (PLL) circuit is a feedback system that combines a voltage controlled oscillator (VCO) and a phase detector in such a way that the oscillator signal tracks an applied frequency or phase modulated signal with the correct frequency and phase. The...

Pulse Code Modulation [PCM] Telemetry System

by admin | Aug 13, 2021 | Remote Control & Telemetry Lab

The experimental setup helps to study how signal from a transducer transmit and receive using Pulse Code Modulation technique. The set up contains three major blocks : LVDT Trainer : The single board trainer with steel case and integrated power supply and Digital...

Frequency Division Multiplexing [FDM] Telemetry System

by admin | Aug 13, 2021 | Remote Control & Telemetry Lab

Frequency Division Multiplexing ( FDM) is based on the idea that a number of signals can share the bandwidth of a common communication channel. The multiple signals to be transmitted over this channel are each used to modulate a separate carrier. Each carrier is on a...

Frequency Telemetry System

by admin | Aug 13, 2021 | Remote Control & Telemetry Lab

The experimental setup helps to understand & use of Frequency Telemetry. The set up contains three major blocks : Load Cell Trainer : The single board trainer helps to study load cell behavior for tensile & Compressive load. The trainer contains :Load cell...
