by Microtek Industries | Aug 8, 2021 | Communication Engineering Lab
This kit provides facilities to students for experimentation in the area of Pulse Amplitude Modulation, Demodulation and Time Division Multiplexing of those signals. It provides the student a facility to examine Sampling, Multiplexing, demultiplexing and signal...
by Microtek Industries | Aug 8, 2021 | Communication Engineering Lab
The single board trainer helps to studies Phase Shift Keying Modulation & Demodulation. The trainer consists of : Sine Wave Carrier Generator : Frequency 33 KHz.Square Wave Signal Source : Variable Frequency 16 KHz [ Max ] and Amplitude 5V [ Max ].PSK...
by Microtek Industries | Aug 8, 2021 | Communication Engineering Lab
The single board helps to studies FSK Modulation & Demodulation. The trainer consists of : Signal Source : Variable Frequency [ 20 Hz – 1KHz ] and Amplitude [ 10V max ].Modulator section with carrier frequency Generator using XR2206.Demodulator section using I.C....
by Microtek Industries | Aug 8, 2021 | Communication Engineering Lab

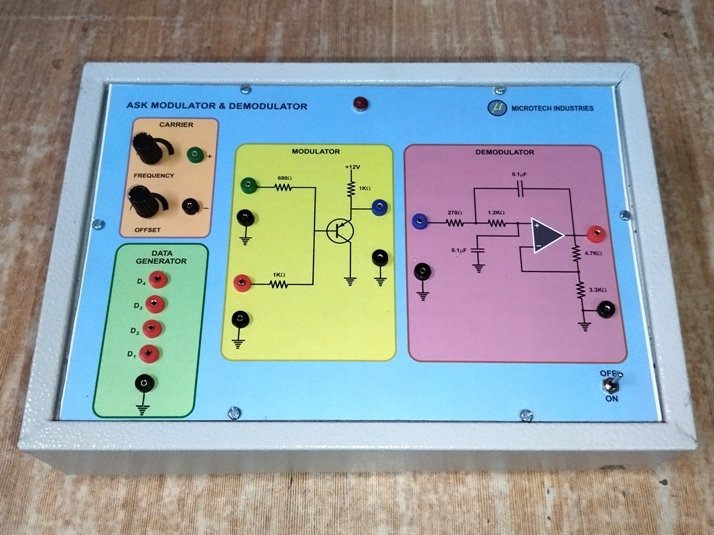

The single board trainer helps to studies ASK Modulation & Demodulation technique. The trainer consists of : Square Wave Signal Source : Variable Frequency [ 100 Hz – 700 Hz ]Sine Wave Carrier Generator : Variable Frequency [ 10 KHz – 100 KHz ]Modulator using...
by Microtek Industries | Aug 8, 2021 | Communication Engineering Lab
The single board trainer helps to study Pulse Width Modulation and Pulse Position Modulation & Demodulation technique. The trainer contains : I.C. Regulated Power Supply.PWM & PPM Modulator.Demodulator.Sine Wave Signal Generator : Variable Frequency [100 Hz –...
